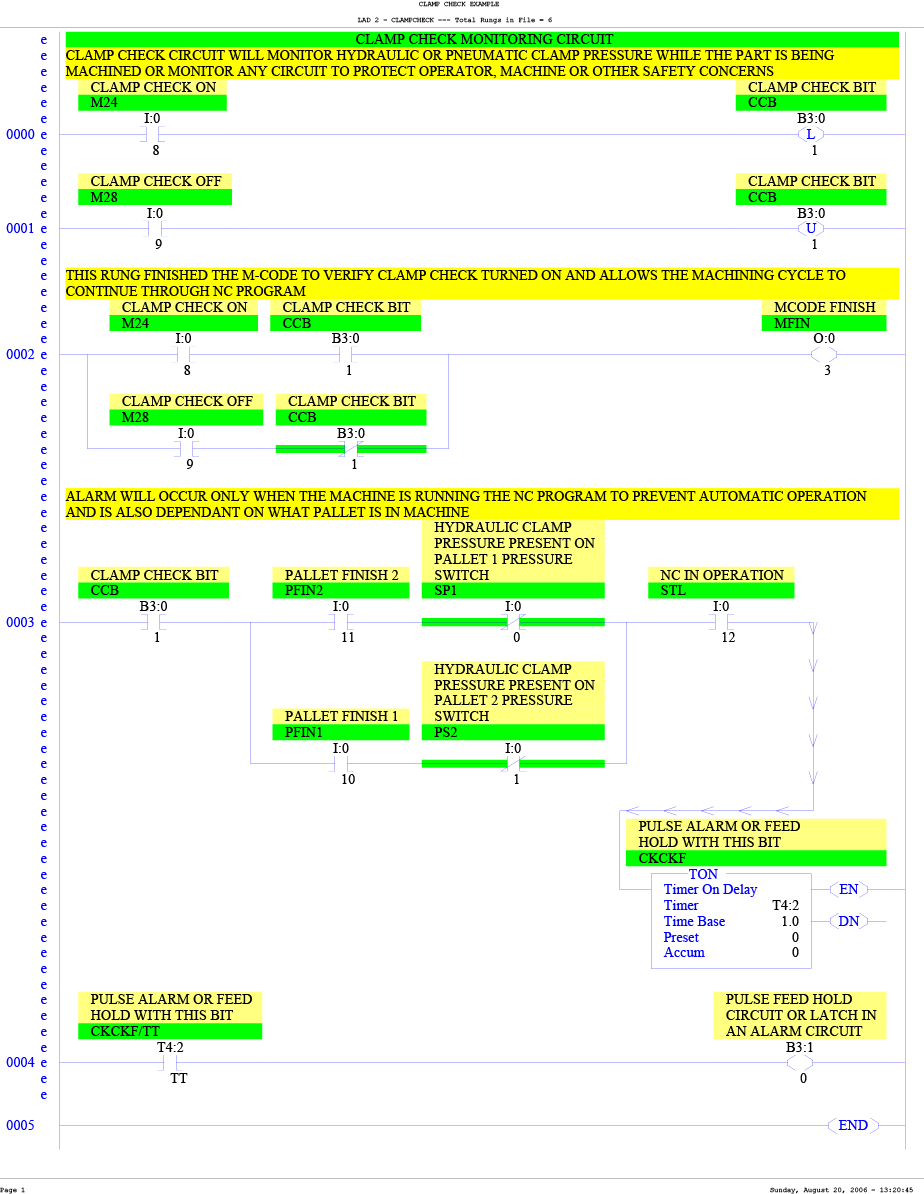

Below is an example of a PLC ladder for monitoring clamp pressure or part seating during the machining process. This is typically used for fixture clamping circuits.



clamp check monitoring PLC example
